Ultron Technology
On Board Charger
for EV
6.6KW Two-Way Liquid OBC
AC-DC
-
Input：85-264Vac
-
Output：108Vdc/144Vdc/336Vdc/384Vdc(Can be customized）
-
Power：6.6KW
-
IP Grade：IP67
-
2nd output volts：13.8Vdc
-
2nd output current：7.3A
-
Efficiency：95%
-
Signal Control：CAN2.0
DC-DC
-
Input：108Vdc/144Vdc/336Vac/384Vac(Tailored available）
-
Output：220Vac
-
Power：6.6KW
-
IP Grade：IP67
-
2nd output volts：13.8Vdc
-
2nd output current：7.3A
-
Efficiency：95%
-
Signal Control：CAN2.0

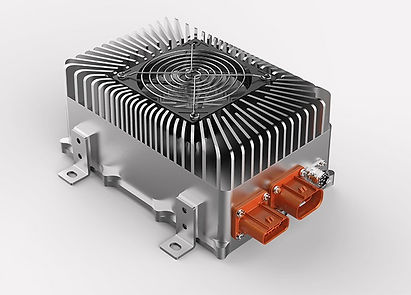

6.6KW Air Cooled OBC
-
Input Volts：85Vac-264Vac
-
Output Volts：108Vdc/144Vdc/336Vdc/384Vdc(Can be customized)
-
Output Power：6.6KW
-
Protection：IP67
-
Low Volts 2nd Output：13.8Vdc
-
Low Volts 2nd Output Current：7.3A
-
Efficiency：95%
-
Signal connector：CAN2.0
12KW Single and Three Phase Liquid OBC
-
Input could be Dual: Single Phase and Three Phase with high efficiency and stability
-
Input Volts：220Vac/380Vac
-
Output Volts：200-750Vdc
-
Output Power：12KW
-
Protection：IP67
-
Low Volts 2nd Output：13.8Vdc
-
Low Volts 2nd Output Current：7.3A
-
Efficiency：95%
-
Signal connector：CAN2.0
20KW 3 Phase OBC
-
Three Phase with high efficiency and stability
-
Input Volts：85-264VAC/304-457VAC(3 Phase)
-
Output Volts：250-450VDC;400-750VDC;500-850VDC
-
Output Power：20KW
-
Protection：IP66
-
Efficiency：95%
-
Signal connector：CAN2.0
2KW OBC
-
Input Volts：85Vac-264Vac
-
Output Volts：12Vdc/24Vdc/48Vdc/60Vdc/72Vdc/96Vdc/144Vdc(Can be customized）
-
Output Power：2KW
-
Protection：IP67
-
Low Volts 2nd Output：13.8Vdc
-
Low Volts 2nd Output Current：4A
-
Efficiency：94%
-
Signal connector：CAN2.0
3.3KW Air Cooled OBC
AC-DC
-
Input：85-264Vac
-
Output：96Vdc/108Vdc/144Vdc/336Vdc/384Vdc(Can be customized）
-
Power：3.3KW
-
IP Grade：IP67
-
2nd output volts：13.8Vdc
-
2nd output current：7.3A
-
Efficiency：95%
-
Signal Control：CAN2.0
DC-DC
-
Input：96Vdc/108Vdc/144Vdc/336Vac/384Vac(Tailored available）
-
Output：220Vac
-
Power：3.3KW
-
IP Grade：IP67
-
2nd output volts：13.8Vdc
-
2nd output current：7.3A
-
Efficiency：95%
-
Signal Control：CAN2.0
